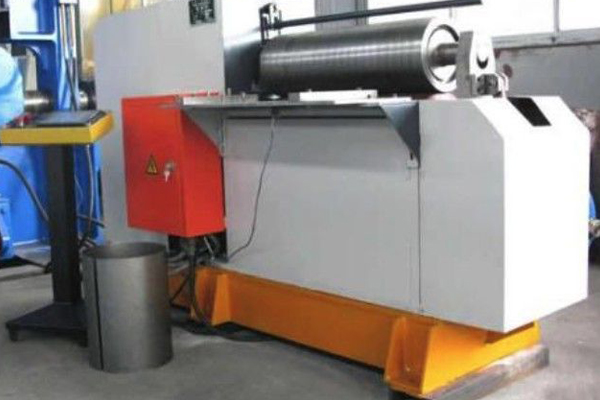

2-roller rolling machine

Overview of two roll plate rolling machine

五福彩票       The 2-roller rolling machine is a new type of rolling machine. The upper roll is a steel roll, and the lower roll is a steel roll core with an outer elastic layer. The plate is placed between the two rolls and the distance between them is adjusted to make it contact-pressurize-the lower roll deforms, and the plate is locally deformed, driving the two rolls Rotate to make the sheet bend continuously. This machine can be formed at one time, with high production efficiency, high geometric accuracy of products, good surface quality, simple structure, minimum number of rollers, simple operation, and easy to realize the numerical control of the production process.

       The 2-roller plate rolling machine has a wide range of uses. It can quickly manufacture thin-walled pipes, ventilation pipes, fans, chimneys, filters, solar water heaters, automobile exhaust pipes, liquid (gas) tanks, and so on.

Technical parameters of 2-roller rolling machine

五福彩票1. Width of rolled workpiece: 850 mm;

五福彩票2. Coil thickness: 3.5mm;

五福彩票3. Workpiece diameter range: Фmin250mm-Фmin620mm;

4. Material of processed plate: Q235;

五福彩票5. Yield limit of processed plate: 245MPa;

6. Equipment capacity: 15kVA;

五福彩票7. Input voltage: three-phase AC, working voltage: 380V / 50Hz;

8. Hydraulic power: 5.5kW;

五福彩票9.Pressure pressure: 6-10MPa;

10. Equipment automation degree: manual feeding, automatic rolling, and automatic discharging;

五福彩票11. The above-mentioned diameter rolling time is about 30 seconds, and the production cycle needs to be included in the loading and unloading time;

五福彩票12. Ambient temperature: -5 ° C to 45 ° C.
