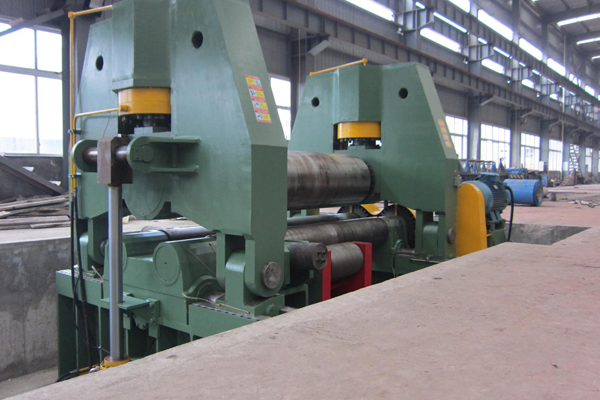

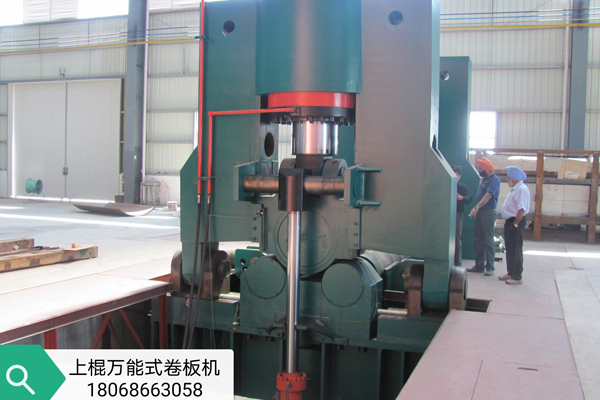

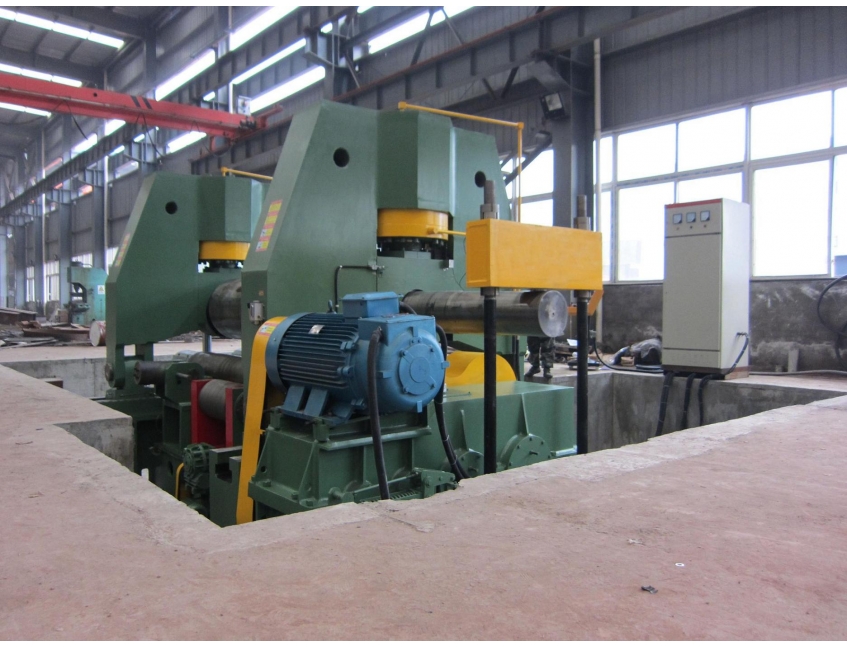

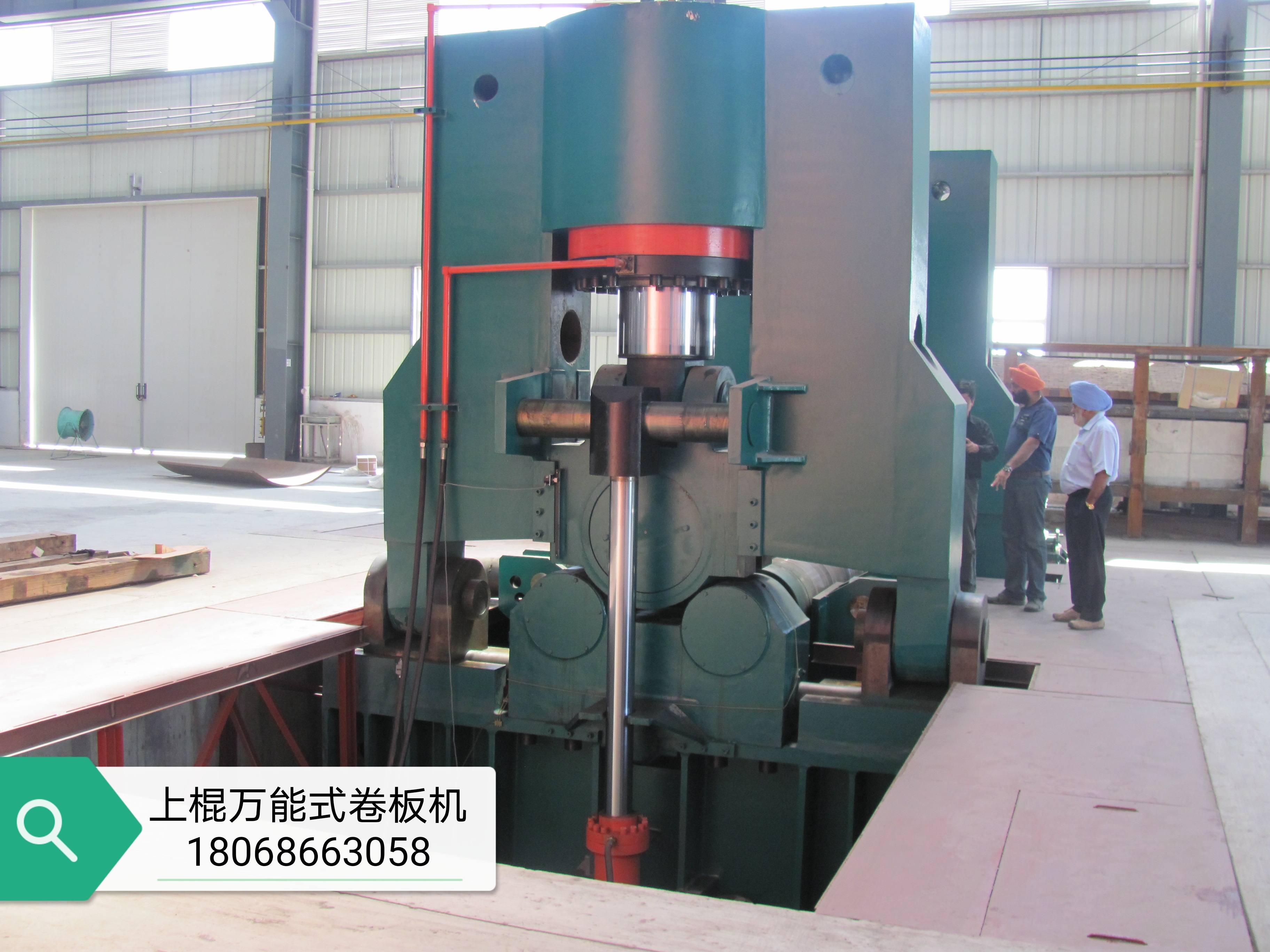

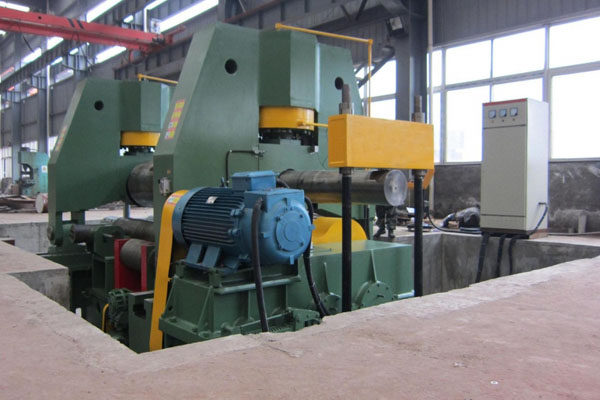

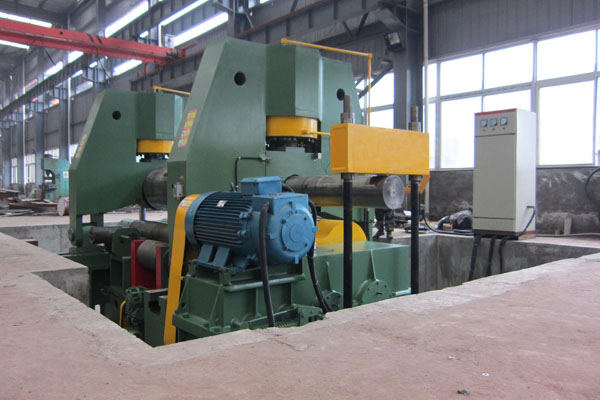

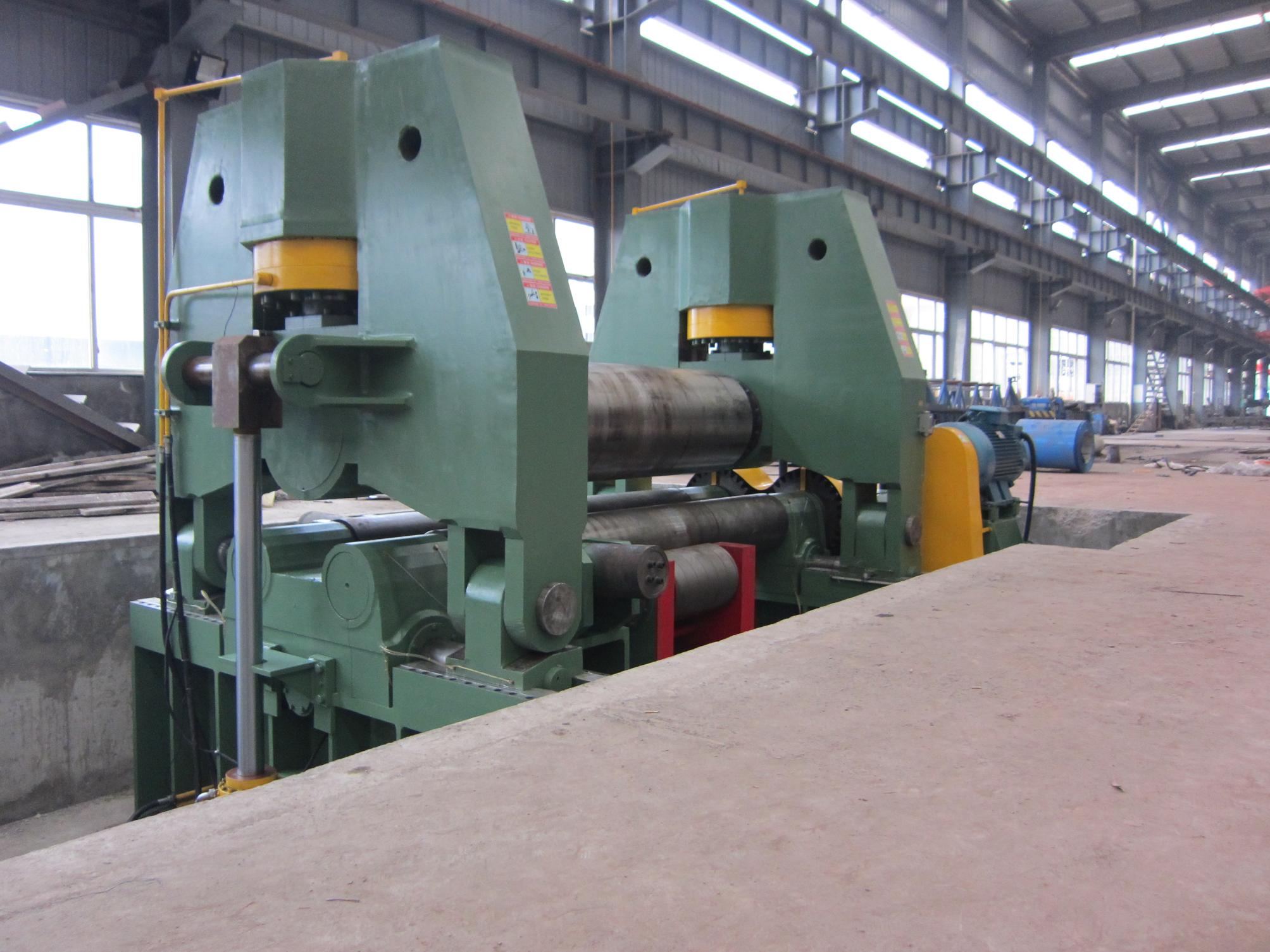

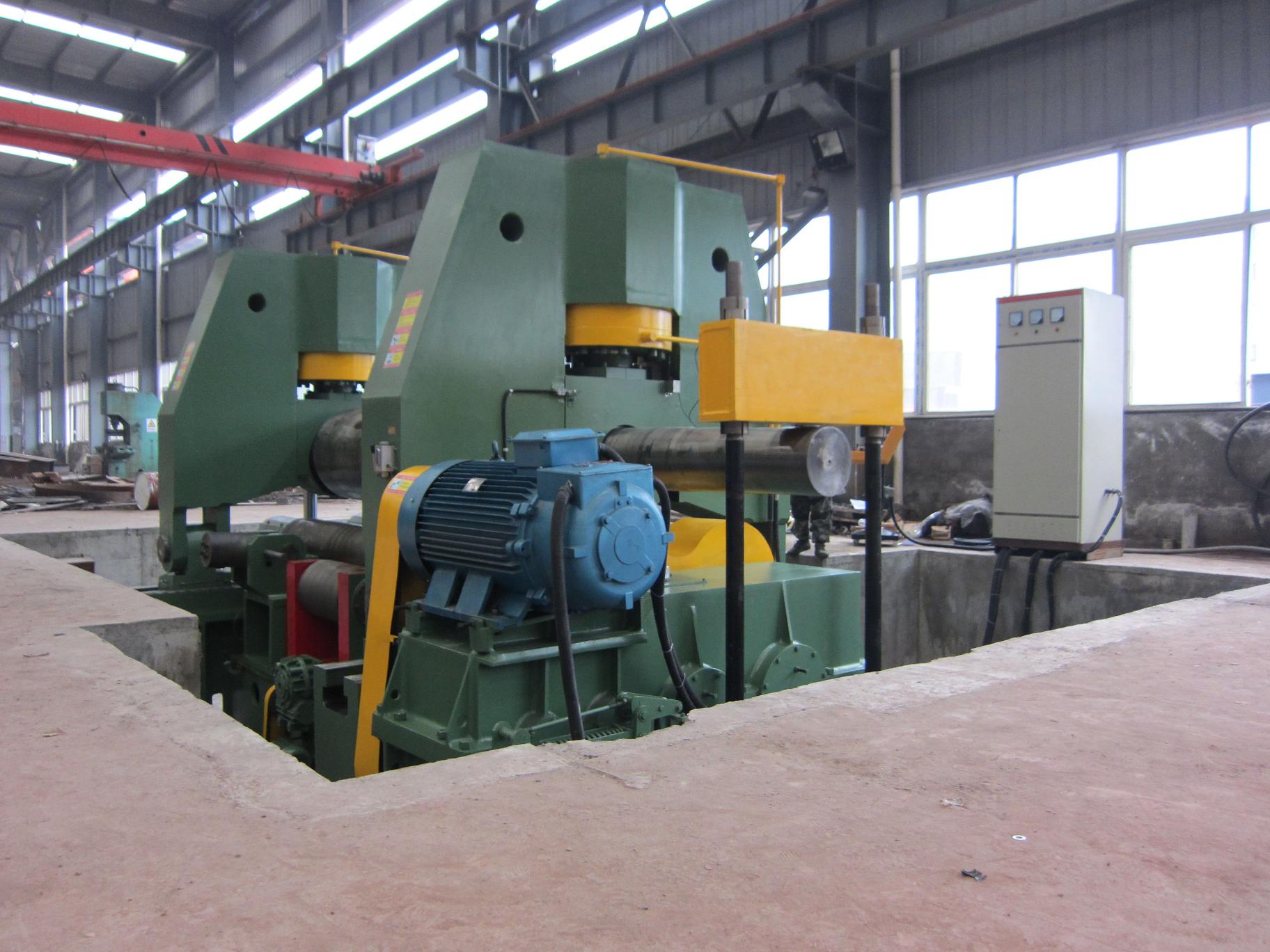

T3SNC-12T3000W Plate Bending Machine
T3SNC-12T3000W Plate Bending Machine is a kind of double pinch plate bending machine. The top roller is hydraulic driving. The top roller is vertically and horizontally adjustable, and the two lower rollers are fixed. All of the rollers in alloyed steel are induction hardening and heat treatment. All of the rollers will be grinded and polished after induction hardening treatment.
Features
五福彩票▲electronic parallelism control system
▲rollers synchronization and balancing control fully electronically controlled
▲top roller hydraulic driving, can be vertically and horizontally adjustable.
五福彩票▲anti-friction material in sliding area
▲instantaneous brake for rollers rotation for high safety
▲reversal side hydraulic driving
▲Mobile control panel station, with low voltage control
▲Mobile control push-buttons, convenience for operator
Parameters
五福彩票W11SNC-120x3000 | |||
Rated Pressing Force from Upper Roller | Ton | 1600 | |
Working temperature | 五福彩票At natural temperature | ||
Plate yield limit | MPa | 245 | |
Max. | Thk. of bending plate | (mm) | 120 |
Thk. of pre-bending | 100 | ||
Width of bending plate | 3200 | ||
Min. rolling dia. with max.size | (mm) | 350 | |
Diameter of Roller | Upper | mm | 920 |
Bottom | mm | 560 | |
Working Rollers | Material | 42CrMo | |
Hardness | (HB) | 260-300 | |
Induction Hardened Roll | YES | ||
五福彩票Roll Profile | crown | ||
Lifting Mode | hydraulic | ||
Central distance of bottom rollers | mm | 1080 | |
Diameter of supporting roller | mm | 520 | |
Adjusting way of supporting rollers | motorized | ||
Rolling speed | m/min | 3.5 | |
Upper roller descending speed | mm/min | 120 | |
Upper roller ascending speed | mm/min | 200 | |
Upper roller horizontal moving speed | mm/min | 100 | |
五福彩票Upper roller supporting way | 五福彩票Self aligning roller bearing | ||
五福彩票Bottom roller driving way | 五福彩票motor + reducer + breaker | ||
Upper roller horizontal moving way | 五福彩票motor+ warm gear | ||
Upper roller horizontal moving speeding | mm/min | 100 | |
五福彩票Upper roller Synchronous Precise/Accuracy | ±(mm) | ≤0.20 | |
五福彩票Upper roller moving precise/accuracy | ±(mm) | ≤0.20 | |
五福彩票Upper roller re-position precise/accuracy | ±(mm) | ≤0.20 | |
Upper roller action control | 五福彩票PLC + transducers | ||
Conical Bending Device | YES | ||
五福彩票Power character | 380V/50Hz/3phase | ||
五福彩票Control System | 五福彩票Control way | PLC control + moving controller | |
Display of position & displacement | LCD | ||
PLC | OMRON | ||
Electrical Part System | SIEMNENS | ||
Main Power Motor | (KW) | 110 | |
五福彩票Motor for hydraulic | (KW) | 55 | |
Motor for horizontal moving | (KW) | 30 | |
五福彩票Hydraulic System | 五福彩票Max. Working Pressure | (MPa) | 25 |
Valve | YUKEN | ||
Seal | VALQUE | ||
五福彩票Electrical & Hydraulic Protection Againts Overload | YES | ||
五福彩票Construction Steel Material | Q235 | ||
Side Support for Big Sheet Metal Diameters | optional | ||
Central Support for Big sheet Metal Diameters | optional | ||
五福彩票Feeding Table | optional | ||
五福彩票Oil Cooler System | optional | ||
