T4-8T1500W Plate Bending Machine

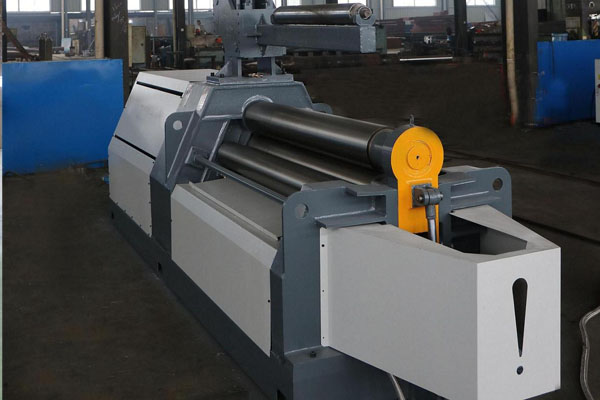

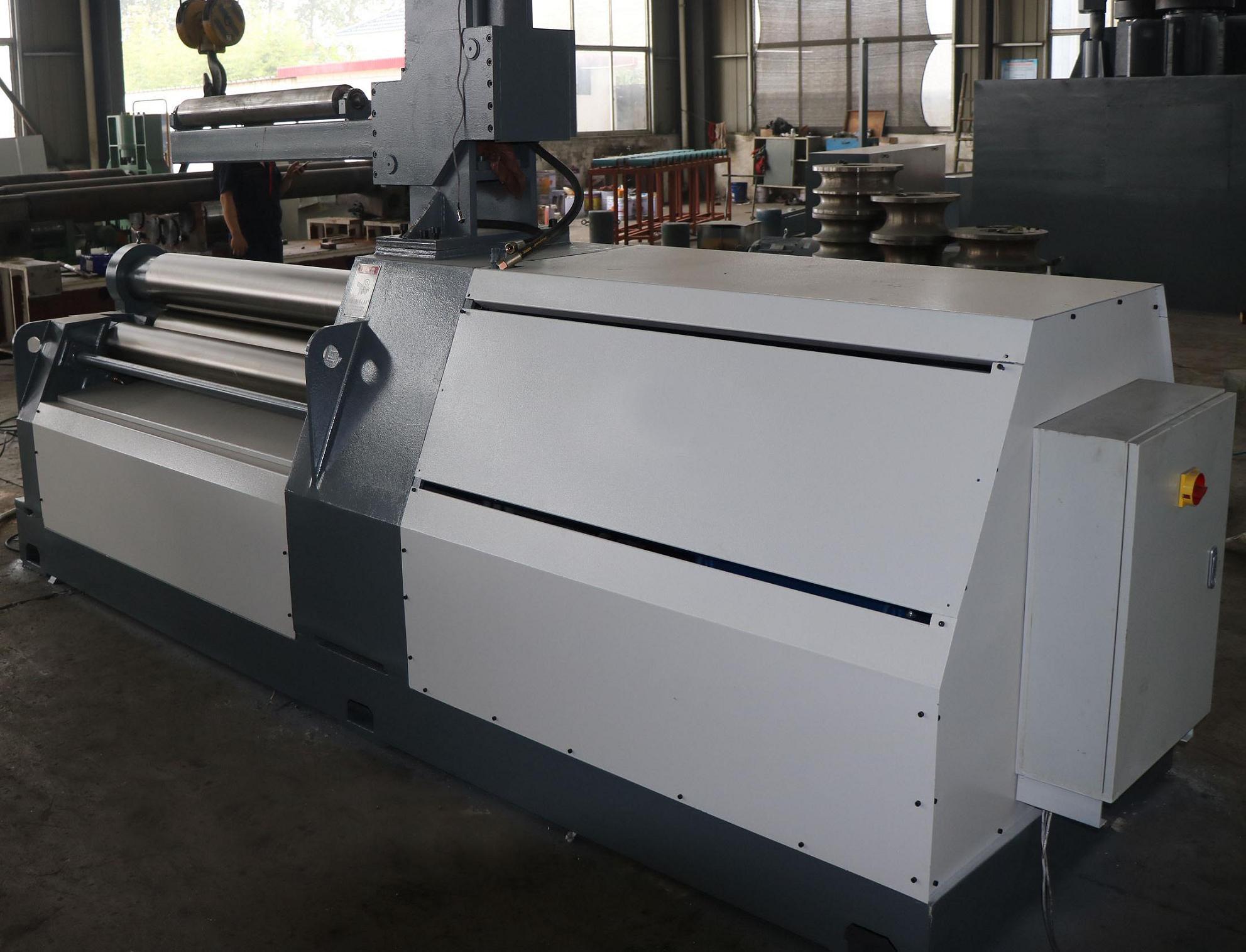

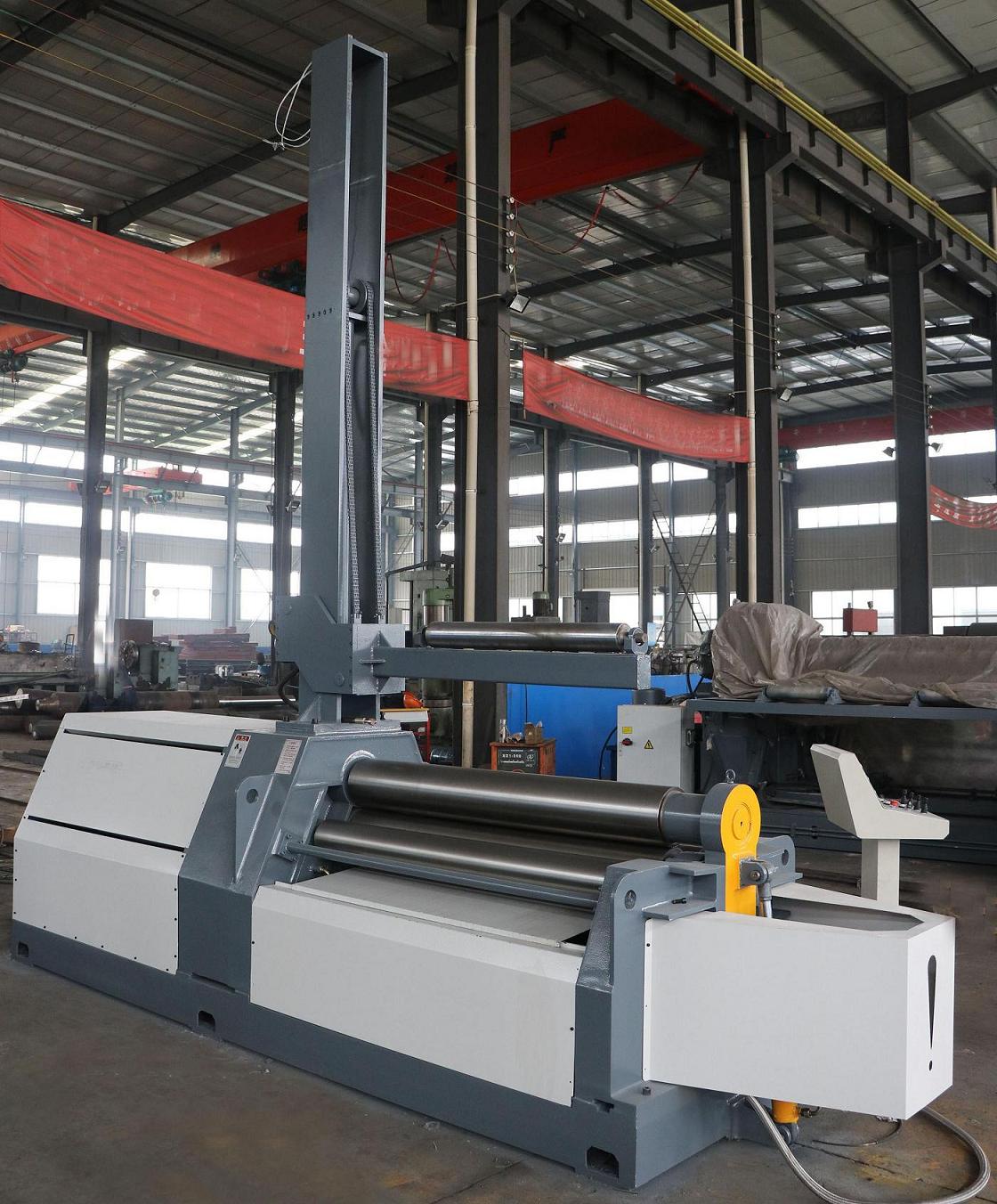

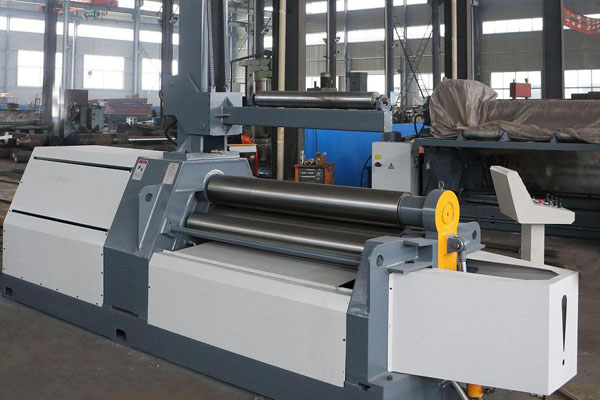

五福彩票T4-8T1500W Plate Bending Machine is a type of double pinch plate bending machine. Each of the rollers is separate driven. Rollers rectilinear slide ways coated with antifriction material, no maintenance, suit to heavy duty loading, smooth and stable positioning. Spherical roller bearings are equipped on the rollers. All of the rollers in alloyed steel are induction hardening and heat treatment. All of the rollers will be grinded and polished after induction hardening treatment.
Parameters
T4-8T1500W Plate Bending Machine Specification | ||||
Max. | 五福彩票Thk. of bending plate | (mm) | 8 | |
Thk. of pre-bending | 6 | |||
Width of bending plate | 1500 | |||
五福彩票Effective length of the rollers | (mm) | 1550 | ||
五福彩票Yield Strength of Plate | (MPa) | 235 | ||
五福彩票Min. reel dia. with max.size | (mm) | 400 | ||
Diameter of Roller | Upper | (mm) | 180 | |
Bottom | 170 | |||
Side | 150 | |||
Roller | Material | 42CrMo | ||
Hardness | (HB) | 240-286 | ||
Induction Hardened Roll | YES | |||
Roll Profile | crown | |||
Lifting Mode | hydraulic | |||
五福彩票Lifting Synchronous Precise/Accuracy | ±(mm) | 0.2 | ||
All Bearing Brand | Self aligning roller bearing | |||
Conical Bending Device | YES | |||
五福彩票Driving Mode | 五福彩票Motor + reducer | |||
五福彩票Control System | Control Mode | NC | ||
Display of position & displacement | LCD | |||
PLC | OMRON | |||
Electrical Part System | SIEMNENS | |||
五福彩票Plate Bending Speed | (m/min) | about 3.5 | ||
Descending/Ascending Speed of bottom roller | (mm/min) | About 160 | ||
Descending/Ascending Speed of side roller | (mm/min) | About 260 | ||
五福彩票Main Power Motor | (KW) | 5,5 | ||
Hydraulic System | Max. Working Pressure | (MPa) | 25 | |
Valve | YUKEN | |||
Seal | VALQUE | |||
五福彩票Electrical & Hydraulic Protection Againts Overload | YES | |||
Construction Steel Material | Q235 | |||
五福彩票Side Support for Big Sheet Metal Diameters | optional | |||
Central Support for Big sheet Metal Diameters | optional | |||
五福彩票Feeding Table | optional | |||
五福彩票Oil Cooler System | optiona | |||
Features:
五福彩票--heady duty linear sliding guides mounted on the uprights of the machine for lower roller and side rollers translation
--electronic parallelism control system
五福彩票--rollers synchronization and balancing control fully electronically controlled
五福彩票--side rollers and bottom rollers variable tilting controlled, positive or negative
五福彩票--conical facility
--rollers driving by independent hydraulic motors
--anti-friction material in sliding area
--instantaneous brake for rollers rotation for high safety
五福彩票--reversal side hydraulic driving
五福彩票--Mobile control panel station, with low voltage control
--Mobile control push-buttons, convenience for operator
Optional:
五福彩票--vertical plate supporting device
--side plate supporting device
